ProgressBar Attribute

Attribute to draw a progress bar

Parameters:

  • float maxValue: The maximum value of the progress bar

  • float barHeight: The height of the progress bar in pixels

Moving the value slider will update the progress bar value:

using UnityEngine;
using EditorAttributes;

public class AttributesExample : MonoBehaviour
{
        [SerializeField, Range(0f, 100f)] private float value;

        [SerializeField, ProgressBar] private int intBar;
        [SerializeField, ProgressBar(100f, 50f)] private float floatBar;

        void OnValidate()
        {
                intBar = (int)value;
                floatBar = value;
        }
}

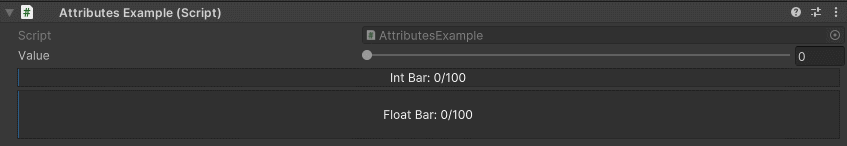

../../_images/ProgressBar01.gif

Note

The ProgressBar Attribute cannot be attached to vector fields
